6 Inch (150mm) HV6 Rotary Table - Horizontal & Vertical Milling Table with 4-Slot Design, 2/5 Inch (10mm) Center Hole, MT-2 Taper - Includes Indexing Plate Set for Precision Milling & Drilling - Perfect for Metalworking, CNC Machining, and DIY Projects
Free shipping on all orders over $50
7-15 days international
22 people viewing this product right now!
30-day free returns
Secure checkout
32271849
Description

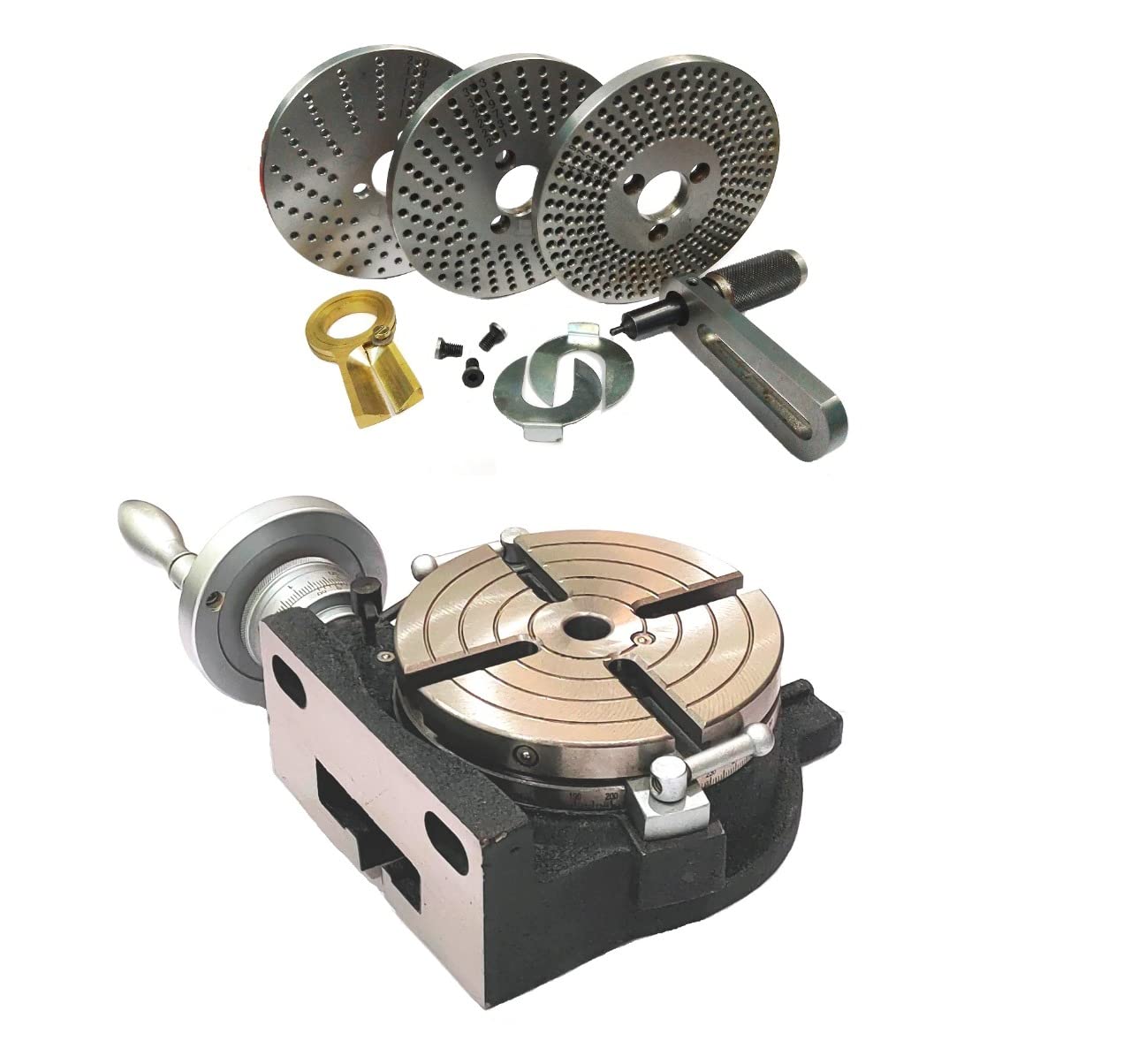

1 handle rotation shall turn the table by 4 Degrees. Centre Bore of the Table: 2 MT A set of Steel Dividing Plates for Indexing with all required Accessories Free Operation & Working Manual Rotary Table Diameter :150 mm (6") Overall Height : 80 mm ( 3-1/4") Centre Height in Vertical Position: 105 mm Supplied with Dividing Plate Set for Indexing. Safety & Operation manual is also supplied. More Information about the Dividing Plate :- Set of 3 dividing plates designed to fit our HV4 & HV6 Rotary Tables. Centre Hole of the Plate is 21 mm No. of Holes in each Plate Plate A- 15, 16, 17, 18, 19, 20, Plate B- 21, 23, 27, 29, 31, 33 Plate C- 37, 39, 41, 47, 49 It is supplied with a brass stopper key, Bracket, Crank Handle & fixing screws. A set of Steel Dividing Plates for Indexing with all required Accessories.
Features

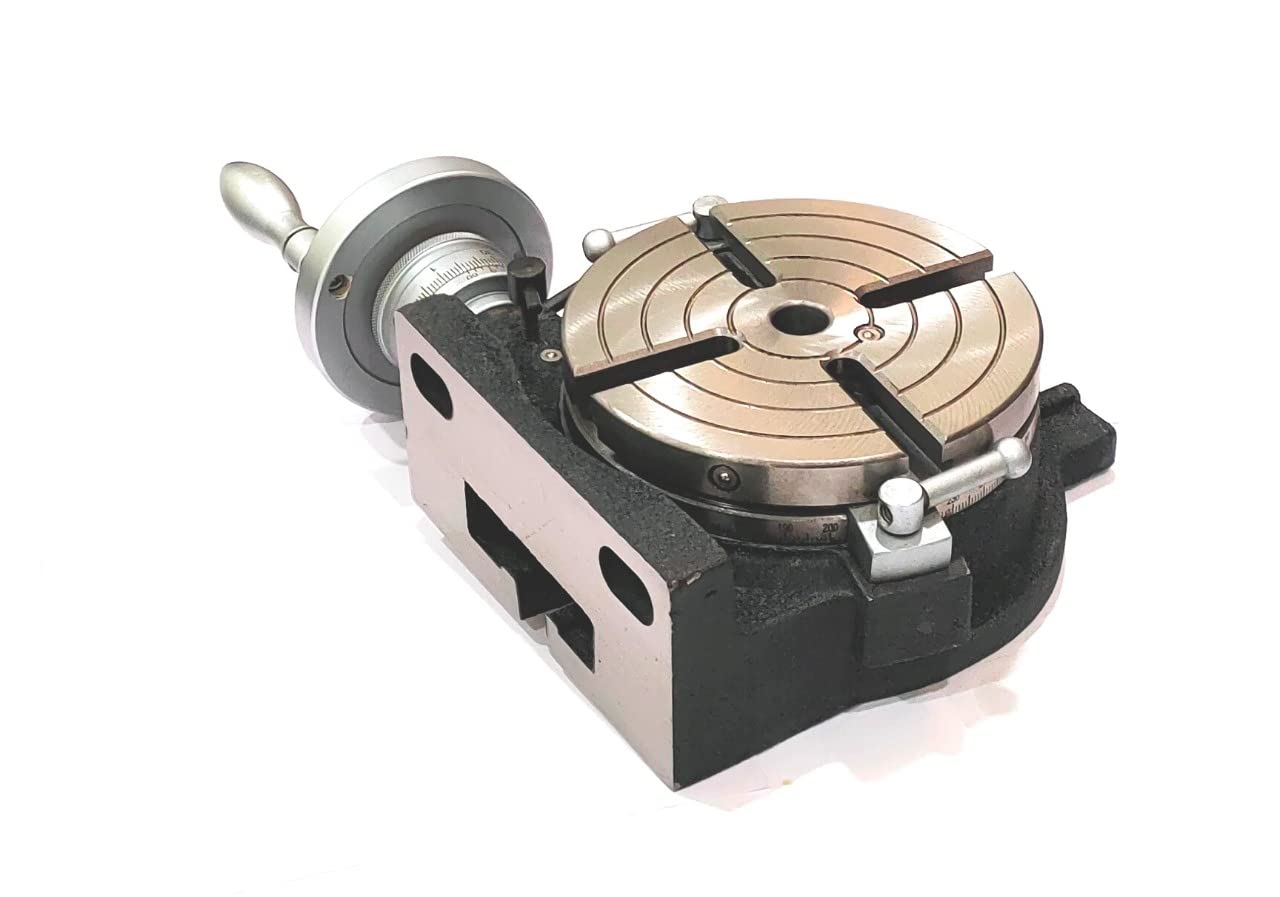

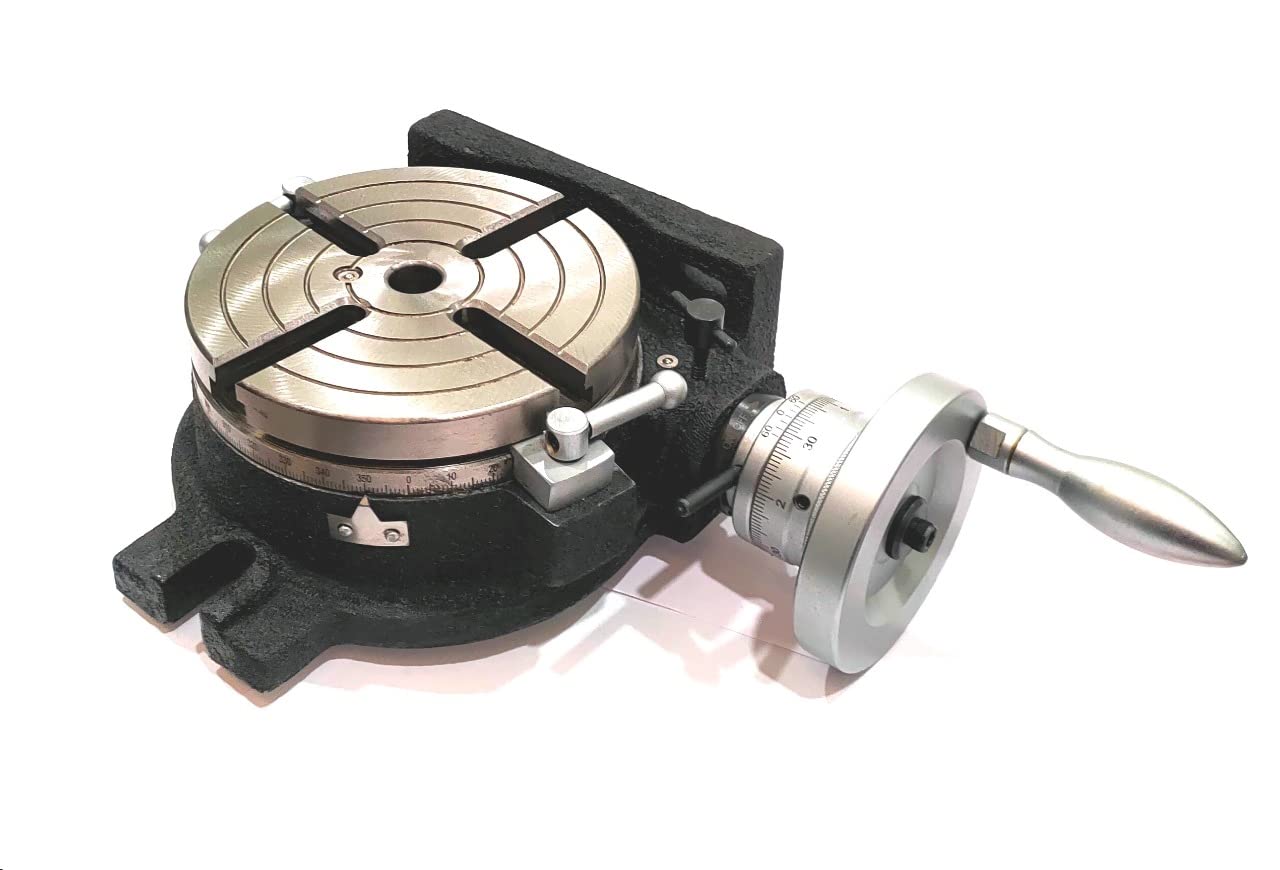

Rotary Table Diameter 150 mm (6") Overall Height 80 mm ( 3-1/4") Centre Height in Vertical Position 105 mm

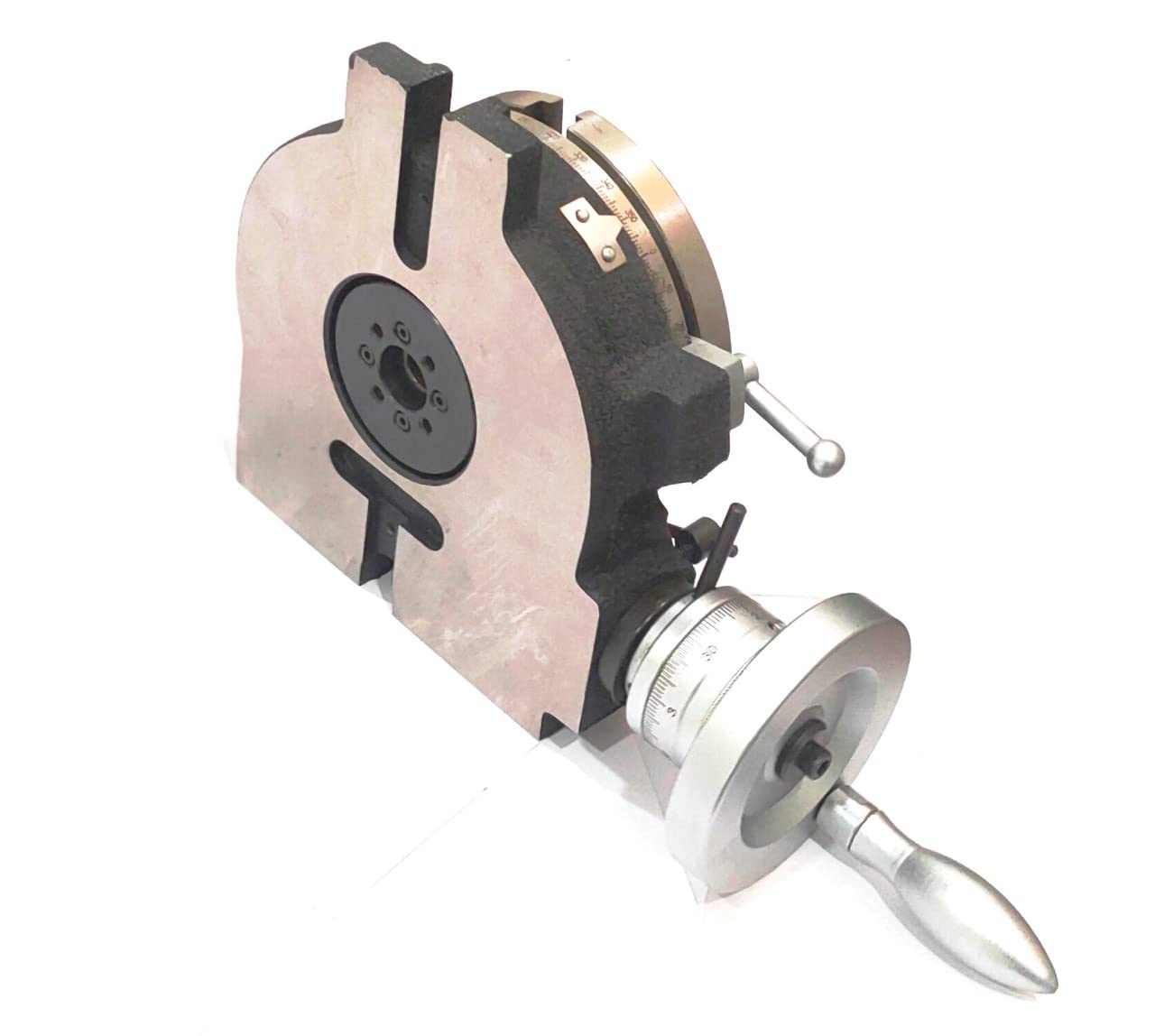

Centre Bore of the Table 2 MT 2 Oiling Points for a direct lubrication of the Table for longer life & better performance. Can be clamped in Horizontal as well Vertical Position. Supplied with Dividing Plate Set. Safety & Operation manual is also supplied.

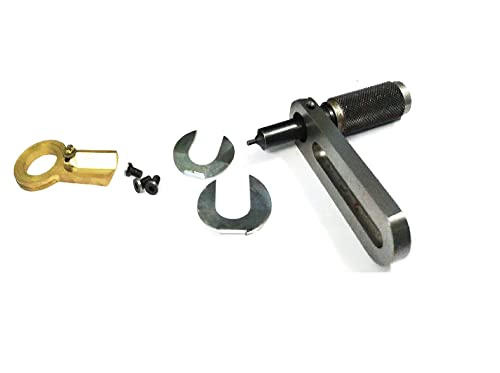

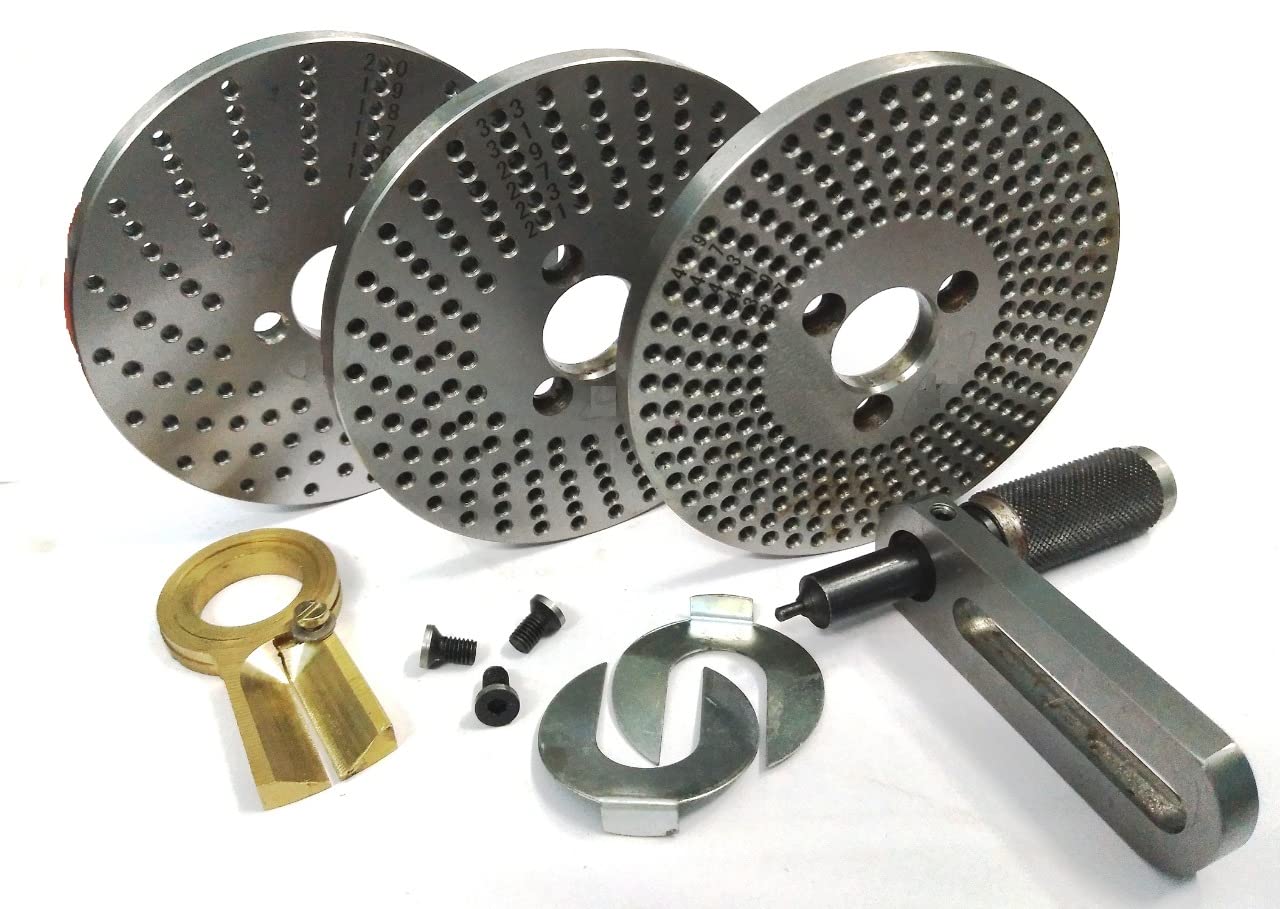

More Information about the Dividing Plate - Set of 3 dividing plates designed to fit our HV4 & HV6 Rotary Tables. Centre Hole of the Plate is 21 mm No. of Holes in each Plate Plate A- 15, 16, 17, 18, 19, 20, Plate B- 21, 23, 27, 29, 31, 33 Plate C- 37, 39, 41, 47, 49 It is supplied with a brass stopper key, Bracket, Crank Handle & fixing screws.
A set of Steel Dividing Plates for Indexing with all required Accessories.
Rotary Table Diameter 150 mm (6") Overall Height 80 mm ( 3-1/4") Centre Height in Vertical Position 105 mm
